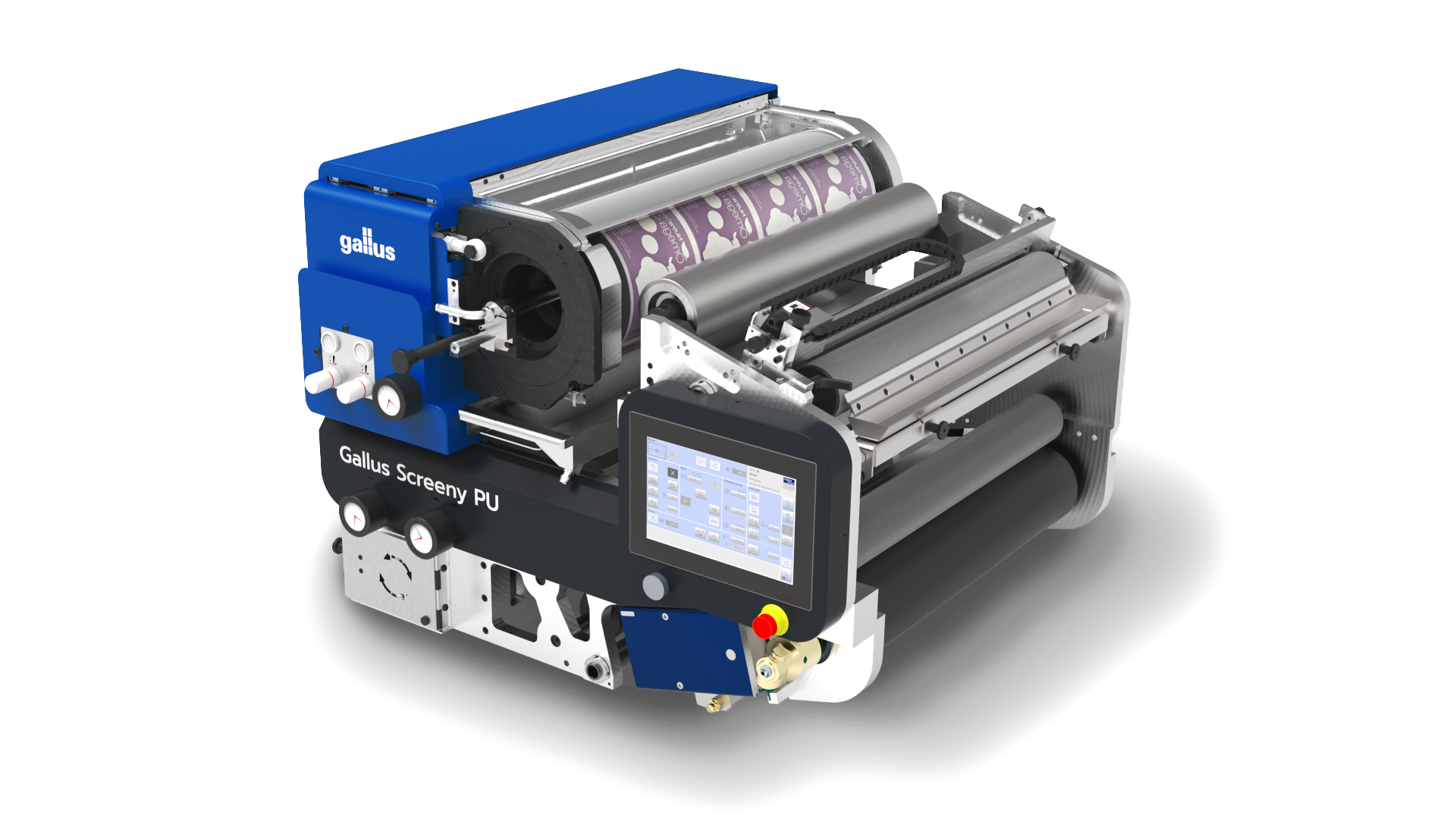

Our screen printing unit offers an independent printing unit in a compact design. It supports formats from Z85 to Z208 and, with printing widths of 340 mm, 440 mm, and 580 mm, as well as a passage width for printing materials of up to 600 mm, is optimally equipped for any printing task.
Benefit from a mechanical speed of 1-120 m/min and a substrate thickness of 40-400 microns. Precise cross and diagonal register adjustment ensures perfect printing results, while screen tear monitoring with sensors and generous ink catch basins guarantee smooth production.
The user-friendly 10" color touch panel allows you to control all functions at a glance. Automated format and distance adjustment between the screen cylinder and impression cylinder, as well as flexible squeegee adjustment, make operation particularly easy. Whether you work with the Gallus system (rubber squeegee), RKS system (carbon variant), or steel band squeegee (bonded rubber), our flexible squeegee system adapts to your individual needs. With two squeegees for the Z85-Z135 and Z135-Z208 formats, you are perfectly equipped.
| Completely independent printing unit |
| Compact design |
| Format sizes Z85 - Z208 |
| Available in print widths of 340 mm, 440 mm, and 580 mm |
| Printing material passage width 360 mm, 460 mm, 600 mm |
| Cross-register +/- 5mm |
| Diagonal register adjustment +/- 0.5 mm |
| Squeegee height adjustment +/- 5 mm. ATS, BDS synchronous |
| Mechanical speed 1-120 m/min |
| Printing substrate thickness 40-400 microns |
| Brand reader (one brand per circumference) |
| Double-sided driven screen |
| Screen breakage monitoring with sensor |
| Large paint collection tray |
| Separate ink collection tray and holder for screen printing squeegee |
| Gearless rings - RCS standard rings |
| Includes squeegee setting gauge / squeegee is set outside the screen printing unit |
| Automated format and spacing adjustment between screen cylinder and counterpressure cylinder (0.20 mm) |
| Format input in number of teeth, inches, or mm, without limitation |
| 10" color touch panel, all functions on the first level |
| Flexible doctor blade system for Gallus System (rubber doctor blade), RKS System (carbon), steel strip doctor blade (bonded rubber) |
| Turn the handwheel for the screen cylinder and register adjustment |
| Squeegee for removing excess paint when starting the machine |
| Automatic format length correction and register control |
| Tool tips - Info pop-up |
| Compensating rod for squeegee parallelism |
| 2 squeegees included for Z85-Z135 and Z135-Z208 |
| Includes control cabinet with 10 m cable |
| Electrical and pneumatic connections are combined using a Harting connector. |
| Standard Gallus RCS sieve rings |
| Standard Gallus screen equipment can be used |
| Automatic pin correction when inserting the screen cylinder |
| Pneumatic squeegee feed, BDS & ATS separately adjustable |
| Integrated ink pump with level control (optional) |
| Remote maintenance/remote help (Internet access) |
| LED lighting for screen cylinders |
| Automated antistatic rod |
| Coated deflection roller |
| Tool tips, info pop-up on display |
| GEW UV curing with cooling roller, prepared for UV and UV LED, water cooling |
| Additional travel distance (1 m) |
| Integrated ink pump |
| Automatic color level control (only in combination with color pump) |
| All technical data, descriptions, and illustrations are subject to change and are not binding. |
