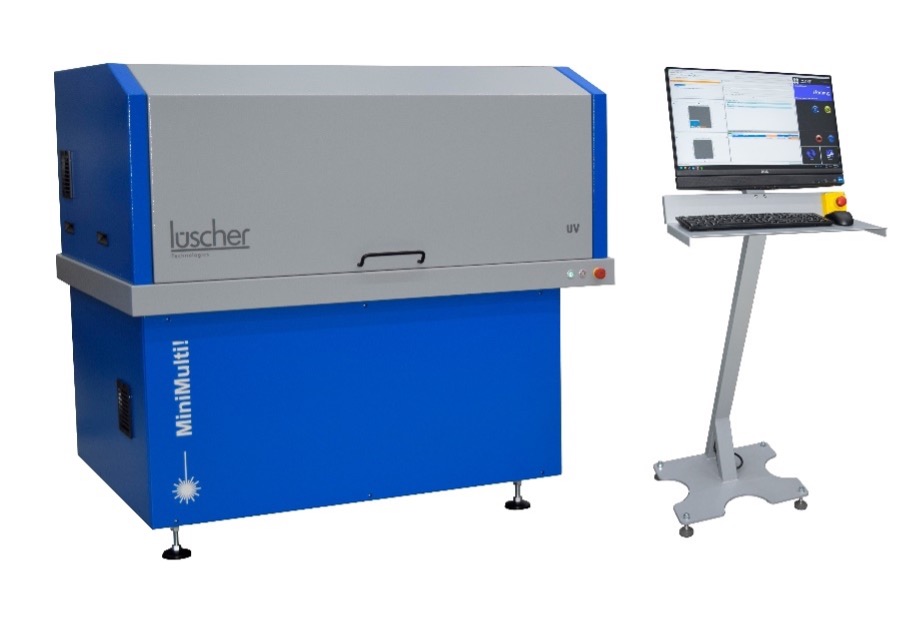

MiniMulti! CtS system (from Lüscher Technologies AG)

The MiniMulti! Flat Screen is a compact imaging system for printing plates up to 760 x 870 mm (29.9 x 34.3 inches). Any common steel or polyester fabric can be processed, and the system has sufficient performance capacity to cure thick emulsion layers and capillary films. Tailor-made vacuum tables and register systems are available for each screen size. MiniMulti! Flat screen comes with a resolution of 2,540 dpi as standard and can be extended optionally with 2,540 dpi to 5080 dpi for higher demands. This means that you always get the best quality-performance ratio.

ECO-400 Automatic washing and drying system

As with exposure, the wash-out and drying process is very important for high image quality, consistency and repeatable results. The ECO 400 wash-out unit for Screeny® defines a new level of process reliability and efficiency. The Screeny® wash-out unit works fully automatically. Two water rails spray water at high pressure from below and above on the Screeny plate®. This two-sided process ensures complete washing out of the emulsion in a very short time. The result is a perfect, dry and ready-to-use Screeny printing plate. The ease of operation via the touch-screen control panel, with preset parameters for each type® of screeny, adds to the versatility and intuitive accessibility of the machine.
